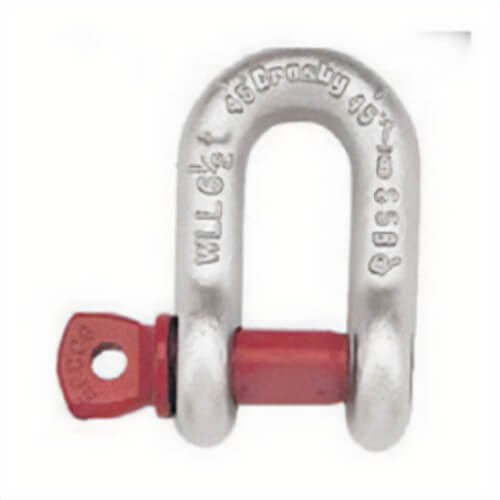

Crosby® 1019169 Chain Shackle, S-210, 0.5 ton Load, 1/4 in, 0.31 in dia Screw Pin, Self-Colored

Manufacturer #1019169

Call for availability

Be the first to review this product

List Price: $12.43

$12.43

Quantity Break Pricing may apply in the cart

HSI

1019169

UPC #:662547007746

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Crosby® Chain Shackle, Series: Maxtough® S-210, 0.5 ton Load, 1/4 in Size, 0.31 in Pin dia, Screw Pin, 0.97 in Inner Length, 0.47 in Inner Width, 0.47 in Opening, 0.62 in Eye Outer, 1.59 in OAL, Carbon Steel Body, Alloy Steel Pin, Self-Colored

Features

Forged quenched and tempered with alloy pins
Working load limit and grade "6 in permanently shown on every shackle
Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
Approved for use at -40 to 204 deg C
Capacities 1/3 thru 55 metric tons, grade 6
The tests are conducted by Crosby® and 3.1 test certification is available upon request
+/-0.06 in L tolerance
+/-0.06 in W tolerance
Fatigue rated
Load rated
For tie down, towing, suspension or lifting applications

Specifications

More Information
Manufacturer Part Number	1019169
Manufacturer	Crosby Group
Brand Name	CROSBY
UPC	662547007746
Length (in)	1.59
Series	S-210
Standard Approvals	ASME B30.26 ABS 2007 DNV Certified CE Certified
Working Load Limit (ton)	0.5
Finish	Self-Colored
Shackle Size	1/4 in
Eye Outer Size (in)	0.62 in
Opening Size	0.47 in
Inner Width	0.47 in
Inner Length	0.97 in
Pin Diameter	0.31 in
Package Quantity	1/Each
