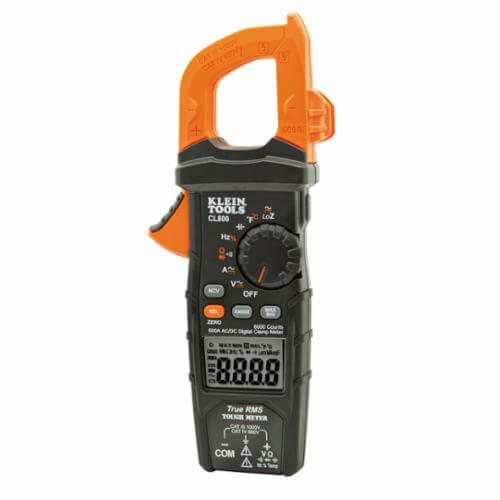

Klein® CL800 AC Auto-Ranging Low Impedance Mode Auto Off Digital Clamp Meter, 1000 VAC/VDC, 600 A, 60 MOhm, 50 to 400 Hz

Manufacturer #CL800

In stock

Be the first to review this product

List Price: $140.98

$140.98

Quantity Break Pricing may apply in the cart

HSI

TEM45012

UPC #:092644690167

Klein® CL800 AC Auto-Ranging Low Impedance Mode Auto Off Digital Clamp Meter, 1000 VAC/VDC, 600 A, 60 MOhm, 50 to 400 Hz is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Klein® Digital Clamp Meter, AC Auto-Ranging Low Impedance Mode Auto Off, 1000 VAC/VDC, 600 A, 60 MOhm, 50 to 400 Hz, 1-3/8 in Jaw, Counts: 6000, LCD, +/- 2% + 5 Digits Accuracy, +/-1.5% + 5 Digits AC, +/-1.2% + 3 Digits DC Accuracy, Safety Rating: CAT IV 600 VAC, CAT III 1000 VAC, Class 2, Double Insulation, (2) AAA Batteries, 32 to 104°F Operating, 3.82 in W x 1.54 in D x 9.09 in H.

Features

Automatically ranging true mean squared (TRMS) technology for increased accuracy
Auto Shut-off
Dual backlit display
Measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
Clamp measures AC current and thermocouple probe measure temperature
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
Low battery indicator and easily accessible battery compartment
2° pollution, 6.6 ft Drop Protection, 6562 ft operating altitude, IP40, 6000 uF capacitance test
Capacitance: 6000 µF
AC current range - 60 A with accuracy of +/-(2% + 8 digits), 10 mA resolution, 600 A with accuracy of +/-(2% + 5 digits), 100 mA resolution, DC current - 60 A with accuracy of +/-(2% + 8 digits), 10 mA resolution, 600 A with accuracy of +/-(2% + 5 digits), 100 mA resolution
Resistance range - 600 Ohm with accuracy of +/-(1.5% + 5 digits), 0.1 Ohm resolution, 6 kOhm with accuracy of +/-(1.5% + 5 digits), 1 Ohm resolution, 60 kOhm with accuracy of +/-(1.5% + 5 digits), 10 Ohm resolution, 600 kOhm with accuracy of +/-(1.5% + 5 digits), 100 Ohm resolution, 6 MOhm with accuracy of +/-(1.5% + 5 digits), 1 kOhm resolution, 60 MOhm with accuracy of +/-(2% + 10 digits), 10 kOhm resolution
AC voltage range - 6 V with accuracy of +/-(1.5% + 5 digits), 1 mV resolution, 60 V with accuracy of +/-(1.2% + 5 digits), 10 mV resolution, 600 V with accuracy of +/-(1.2% + 5 digits), 100 mV resolution, 1,000 V with accuracy of +/-(1.5% + 5 digits), 1 V resolution
DC voltage range - 600 mV with accuracy of +/-(1% + 8 digits), 0.1 mV resolution, 6 V with accuracy of +/-(1.2% + 3 digits), 1 mV resolution, 60 V with accuracy of +/-(1.2% + 3 digits), 10 mV resolution, 600 V with accuracy of +/-(1.2% + 3 digits), 100 mV resolution, 1,000 V with accuracy of +/-(1.2% + 3 digits), 1 V resolution
Capacitance range - 60 nF with accuracy of +/-(5% + 35 digits), 0.010 nF resolution, 600 nF with accuracy of +/-(3% + 5 digits), 0.1 nF resolution, 6 uF with accuracy of +/-(3% + 5 digits), 0.001 uF resolution, 60 uF with accuracy of +/-(3% + 5 digits), 0.01 uF resolution, 600 uF with accuracy of +/-(5% + 5 digits), 0.1 uF resolution, 6000 uF with accuracy of +/-(5% + 5 digits), 1 uF resolution
1Hz - 500 kHz frequency rating
Measures current

Specifications

More Information
Manufacturer Part Number	CL800
Manufacturer	Klein Tools
Brand Name	KLEIN TOOLS
UPC	092644690167
Length (in)	9.09
Width (in)	3.82
Height (in)	1.54
Standard Approvals	CAT IV 600V / CAT III 1000V CE Certified Class 2
Includes	Carrying Case, 41 in (1041.4 mm) Test Leads, Thermocouple with Adapter, and Batteries
Type	600A AC/DC, LoZ
Battery Type	AAA
Voltage	1000V AC/DC
Temperature Rating	-14 to 1000°F (-26 to 538°C)
Electrical Rating	1000 VAC/VDC, 600 A AC/DC
Current	600A AC; 600A DC
Drop Protection	6.6 ft
Power Source	(2) AAA Batteries
Package Quantity	1/Each
