National 1039129 S-501 Open Swage Socket, 9/16 in Cable, 1.16 in After Swage, Carbon Steel
Manufacturer #1039129
In stock
List Price:
$157.30
$157.30
Quantity Break Pricing may apply in the cart
HSI
FIT12725
UPC #:662547391296
Product Overview

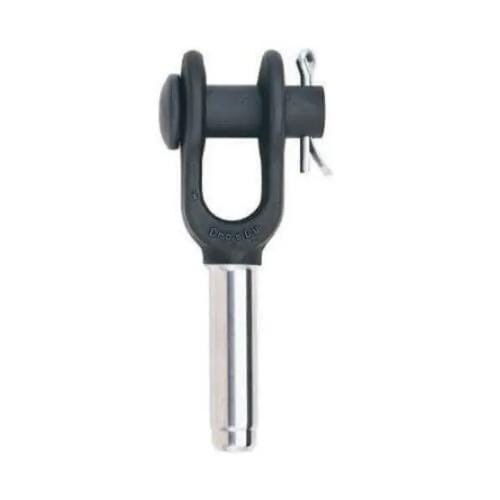

National Open Swage Socket, series: S-501, 9/16 in Cable, 1.16 in After Swage dia, Carbon Steel, for Use With: IPS, XIP (EIP), XXIP (EEIP), RRL, FC and IWRC Wire Rope.
Features
- Forged from special bar quality carbon steel, suitable for cold forming
- Swage socket terminations have an efficiency rating of 100% based on the catalog strength of wire rope
- Hardness controlled by spheroidize annealing
- Stamp for identification after swaging without concern for fractures
- Swage sockets incorporate a reduced machined area of the shank which is equivalent to the proper after swage dimension
- Before swaging, this provides for an obvious visual difference in the shank diameter
- After swaging, a uniform shank diameter is created allowing for a Quic-Check® and permanent visual inspection opportunity
- Designed to quickly determine whether the socket has been through the swaging operation and assist in field inspections, it does not eliminate the need to perform standard production inspections which include gauging for the proper after swage dimensions or proof loading
Specifications
| Manufacturer Part Number | 1039129 |
|---|---|
| Manufacturer | Crosby Group |
| Brand Name | NATIONAL |
| UPC | 662547391296 |
| Series | S-501 |
| Standard Approvals |
|
| Warranty | Limited |
| Material | Carbon Steel |
| Package Quantity | 1/Each |
