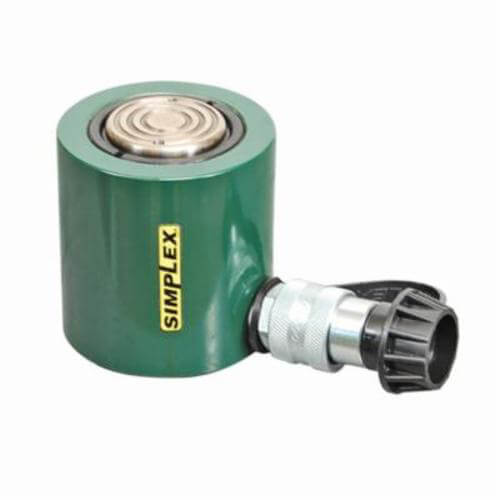

Simplex® RLS302 Low Profile Single Acting Spring Return Hydraulic Cylinder, 30 ton Capacity, 2.87 in dia Bore, 2.44 in L Stroke

Manufacturer #RLS302

Call for availability

Be the first to review this product

List Price: $785.00

$785.00

Quantity Break Pricing may apply in the cart

HSI

THY40010

UPC #:812761020902

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Simplex® Hydraulic Cylinder, Low Profile Single Acting Spring Return, series: RLS, 30 ton, 2.87 in dia Bore, 2.44 in Stroke, 4.63 in H Retract, 2.62 in Rod dia, 10000 psi, Steel Housing, 4 in OD.

Features

HD internal spring for retract assistance
Heat treated hardened load cap is standard
Stop ring for piston blow out protection
Plated piston to resist scoring and corrosion
High flow couplers are plated to resist corrosion
Rod wiper protects inner cylinder from dirt
4.63 in height retract

Specifications

More Information
Manufacturer Part Number	RLS302
Manufacturer	Enerpac Tool Group
Brand Name	SIMPLEX
UPC	812761020902
Length (in)	6
Width (in)	8.1
Height (in)	5.9
Standard Approvals	ANSI/ASME B30.1
Type	Low Profile Single Acting Spring Return
Stroke Length	2.44 in
Bore Diameter	2.87 in
Rod Diameter	2.62 in
Package Quantity	1/Each
