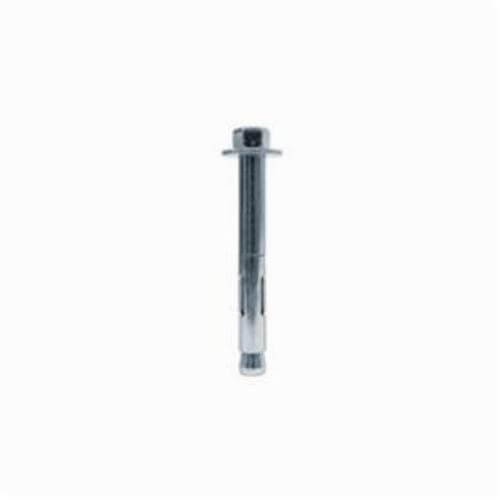

Simpson Strong-Tie® SL31212H Sleeve-All® Pre-Assembled Expanding Sleeve Anchor, 5/16 in dia, 1/4-20 Thread, Carbon Steel, Hex Head and Drive
Manufacturer #SL31212H
Call for availability
List Price:
$0.56
$0.56
Quantity Break Pricing may apply in the cart
HSI
ANC68050
UPC #:044315633102
Simpson Strong-Tie® SL31212H Sleeve-All® Pre-Assembled Expanding Sleeve Anchor, 5/16 in dia, 1/4-20 Thread, Carbon Steel, Hex Head and Drive is available to buy in increments of 50
Product Overview
Simpson Strong-Tie® Sleeve anchor, Pre-Assembled Expanding, series: Sleeve-All®, 5/16 in dia, 1/4-20, Carbon Steel, Hex, Hex Drive, Zinc Plated, 1-7/16 in Minimum Embedment Depth, 2-1/2 in OAL, 5/16 in Drill, 540 lb at 2000 psi Shear Strength, 280 lb at 2000 psi Tensile. Sleeve-All® Expanding Anchors are Pre-Assembled, Expanding Sleeve Anchors For Use in All Types of Solid Base Materials. This Anchor is Available in Acorn, Hex, Rod Coupler, Flat or Round Head Style For a Wide Range of Applications.
Features
- 1-1/6 in Thick maximum fixture
- Material meets minimum 50000 psi tensile anchor body
- SAE J403, grade 1008 cold rolled steel sleeve
- Commercial grade nut, meets requirements of ASTM A563 grade A
- SAE J403, grade 1008/1010 cold rolled steel washer
- 3-1/8 in critical edge distance
- 5-3/4 in critical spacing distance
- 1120 lb at 2000 psi/1320 lb at 4000 psi/ultimate tension load for concrete
- 2160 lb at 2000 psi ultimate shear load for concrete
- 8 ft-lb install torque
- 330 lb at 4000 psi for concrete
Specifications
| Manufacturer Part Number | SL31212H |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Brand Name | SIMPSON STRONG-TIE |
| UPC | 044315633102 |
| Length (in) | 2.5 |
| Height (in) | 0.3125 |
| Series | Sleeve-All® |
| Standard Approvals |
|
| Type | Pre-Assembled Expanding |
| Head Style | Hex |
| Drive Type | Hex |
| Thread Size | 1/4 in - 20 |
| Diameter | 5/16 in |
| Material | Carbon Steel |
| Package Quantity | 50/Each |
