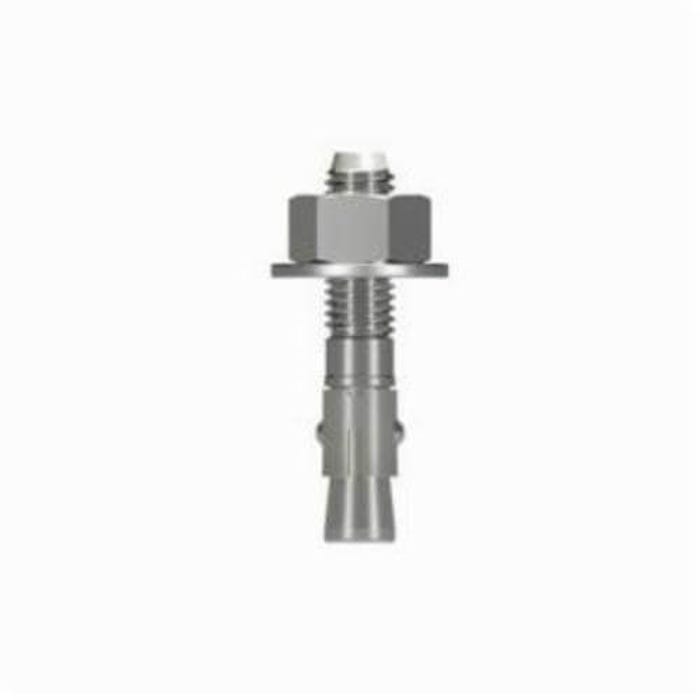

Simpson Strong-Tie® WA502344SS Wedge-All® Wedge Anchor, 1/2 in dia, 2-3/4 in OAL, 1-5/16 in L Thread, 303/304 SS

Manufacturer #WA502344SS

Call for availability

Be the first to review this product

List Price: $4.52

$4.52

Quantity Break Pricing may apply in the cart

HSI

ANC77460

UPC #:707392810704

Simpson Strong-Tie® WA502344SS Wedge-All® Wedge Anchor, 1/2 in dia, 2-3/4 in OAL, 1-5/16 in L Thread, 303/304 SS is available to buy in increments of 25

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

Simpson Strong-Tie® wedge anchor, series: Wedge-All®, 1/2 in dia, 2-3/4 in OAL, 1-5/16 in thread length, 303/304 stainless steel, 2-1/4 in minimum embedment depth, 1/2 in drill, 3/4 in head, 6,560 lb shear strength, 740 lb tensile a non-bottom-bearing, wedge-style expansion anchor for use in solid concrete or grout-filled masonry. The Wedge-All® wedge anchor is available in carbon steel with zinc or mechanically galvanized coating, as well as types 303/304 and type 316 stainless steel. Threaded studs are set by tightening the nut to the specified torque. The Wedge-All® is code listed for grout-filled masonry applications.

Features

Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
One-piece, wrap-around clip ensures uniform holding capacity
Threaded end is chamfered for ease of starting nut
18-8 stainless steel nut/washer/clip
The minimum concrete thickness is 1-1/2 times the embedment depth
The allowable loads are based on a safety factor of 4
9/16 in minimum fixture hole
60 ft-lb installation torque
6560 ultimate and 1345 lb allowable shear strength
740 lb at 2000 psi and 1190 lb at 4000 psi allowable tension load

Specifications

More Information
Manufacturer Part Number	WA502344SS
Manufacturer	Simpson Strong-Tie
Brand Name	SIMPSON STRONG-TIE
UPC	707392810704
Length (in)	2.75
Height (in)	0.5
Series	Wedge-All®
Standard Approvals	Federal Specification A-A-1923A Type 4 FM 3017082 3031136 3043442 Florida FL15730.8 UL File Ex3605
Head Size	3/4 in
Diameter	1/2 in
Material	303/304 Stainless Steel
Thread Length	1-5/16 in
Package Quantity	25/Each
